XeNamnoy 1 Hydropower project is located on the main stream of the XeNamnoy (river) in south-eastern Boloven Plateau, Attapeu Province, Lao PDR. The project is located near Pengphukham Village, Samakhixay District.

XeNamnoy is pronounced like "Say nam noy".

XeNamnoy 6 Dam Hydropower project is located in the same general area as the XeNamnoy 1 project but XeNamnoy 6 is a small project with less than 5 MW capacity. You can see our XeNamnoy 6 web page HERE .

XeNamNoy 1 & 6 hydropower projects both on satellite image below: XeNamNoy 1 head pond is at coordintaes - 15°08'02.6"N 106°40'39.2"E (15.134056, 106.677556) and XeNamNoy 1 Powerhouse at 15°09'11.0"N 106°43'07.0"E (15.153056, 106.718611):

Also see our satellite image area map that is too large to display on this web page - XeKatam and XeNamnoy Rivers Map

3 hydro projects within 9 km of each other - XeNamNoy 1 & 6 and XeKatam 1 .

According to the CDM filing document (see below) the project was developed by Phongsubthavy Road & Bridge Construction Co., Ltd.. and later incorporated into Xe Nam Noy 1 Hydropower Company Limited which is now 100% owned by Lao-based Chaleun Sekong Group Co. Ltd. (CS Energy).

Project cost was US$ 36.86 million

Xe Namnoy 1 hydropower project area image below:

The project is a run-of-river hydropower station. The installed capacity of the project is 14.8 MW with annual capacity of 85 GWh power supplied to EDL at Ban Lak 52 by a 22 kV transmission line - 3 circuits, 5.2 km length.

The construction of the project includes fixed weir, sand f1ush, intake structure, headrace channel, head tank, penstock, powerhouse with 2 units of turbines (2 x 7.4 MW) and a tailrace.

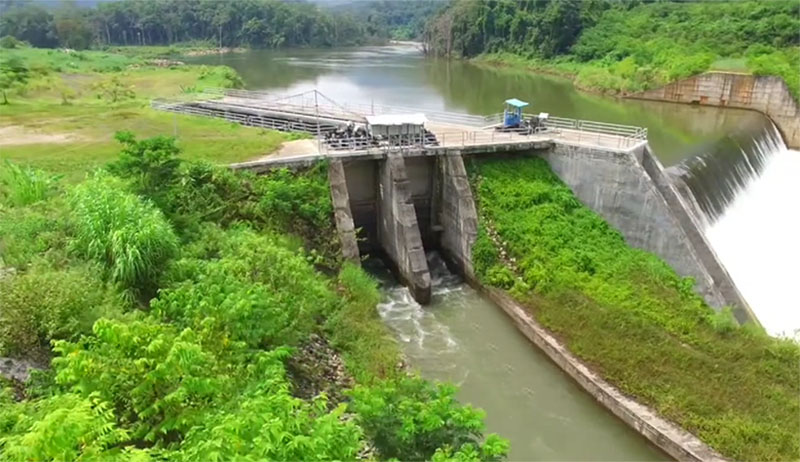

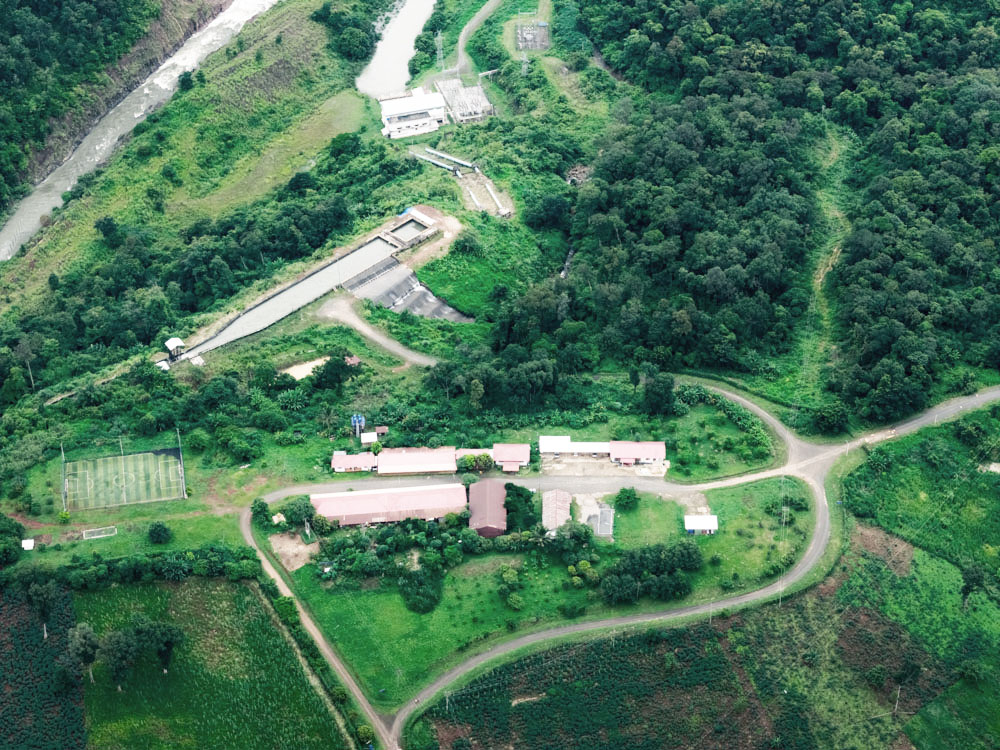

Xe Namnoy 1 hydropower project site image below:

Xenamnoy 1 Dam Hydropower statistics charts below:

As the construction site is far away from nearest village, the project apparently will not result in any displacement of residents or inundation of houses. The project is a run-of–river project and does not have a large reservoir. A minimum flow will always be released from a small head pond to maintain the eco-system and meet demand for irrigation downstream.

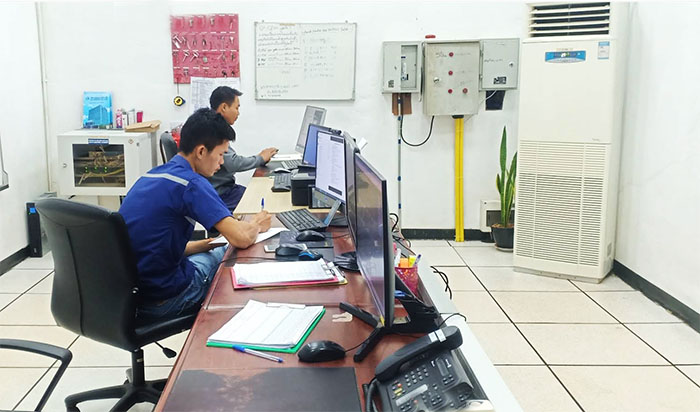

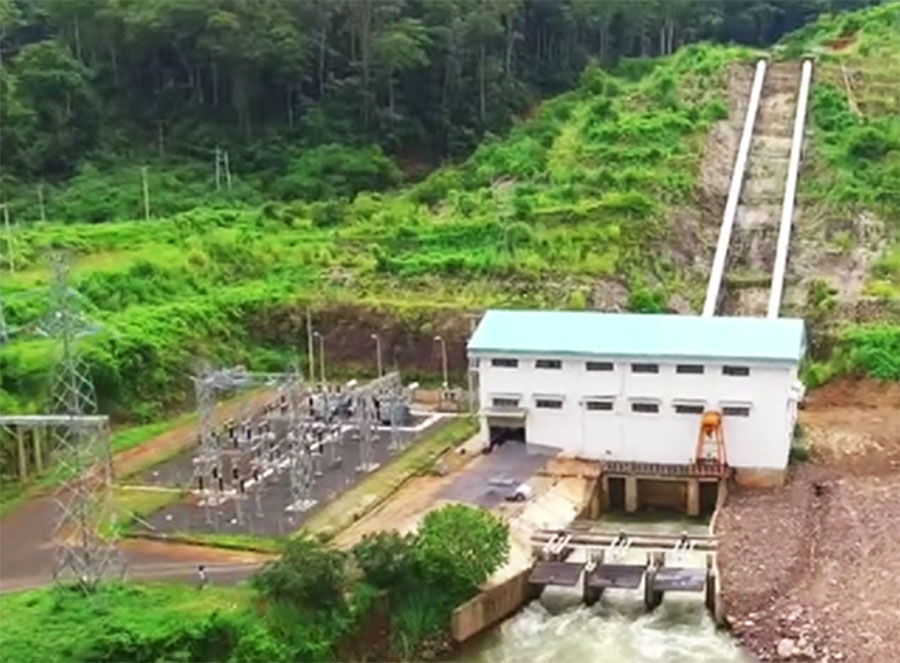

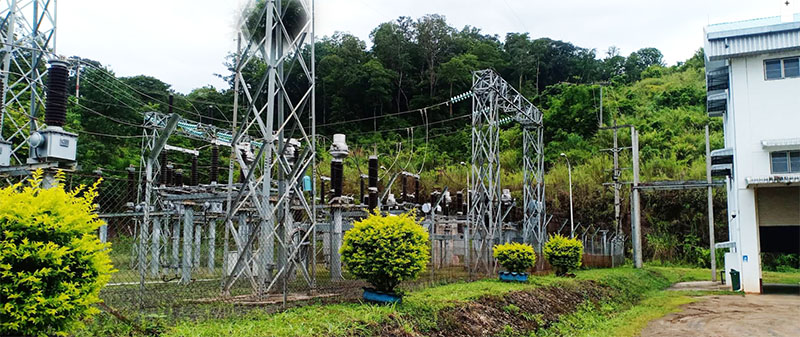

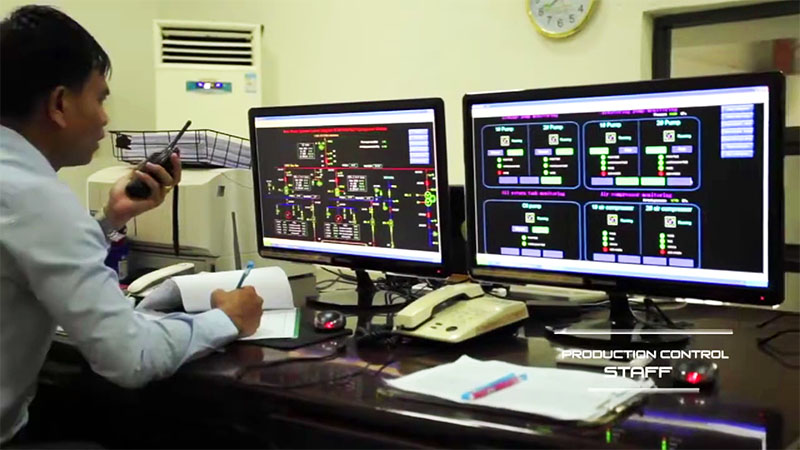

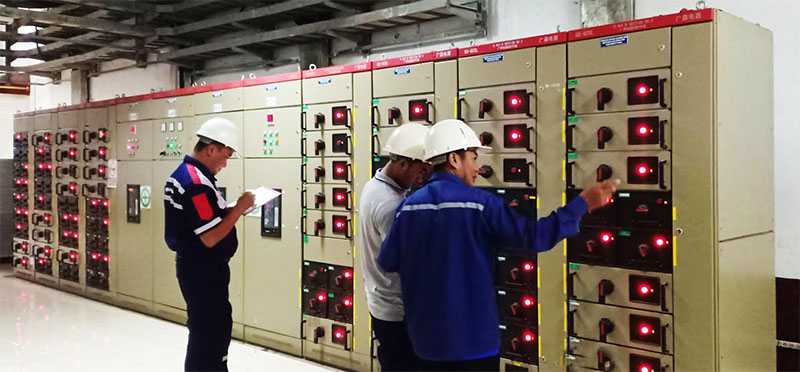

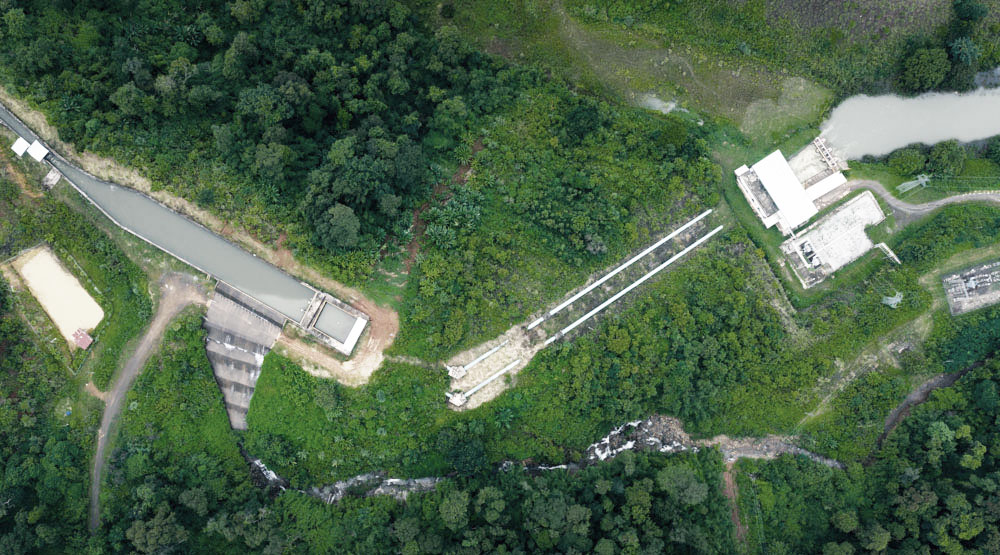

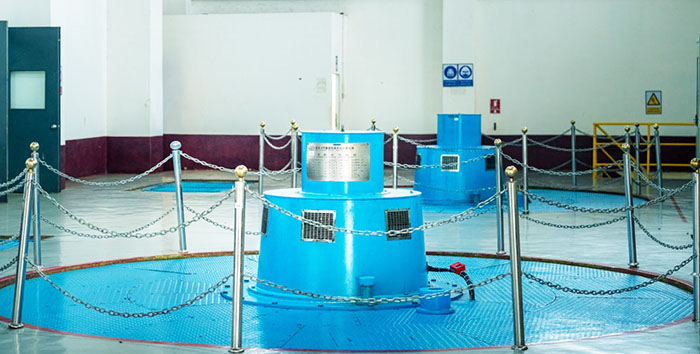

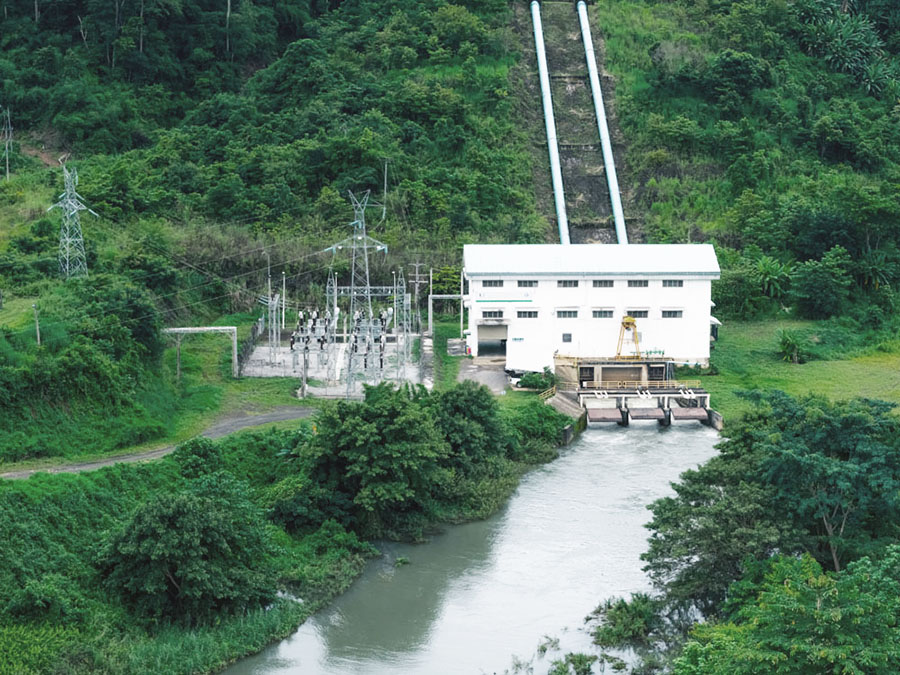

XeNamnoy 1 Hydropower plant images below:

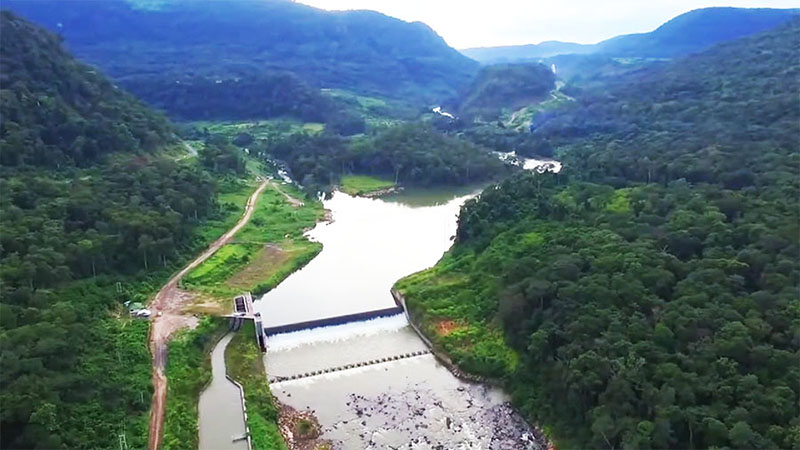

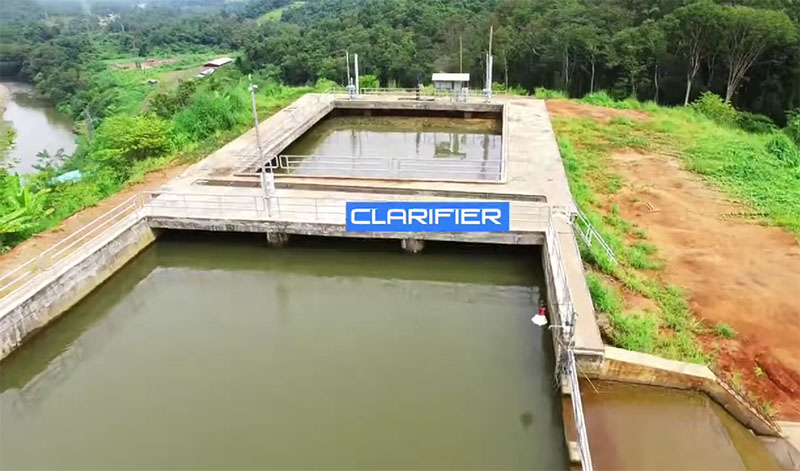

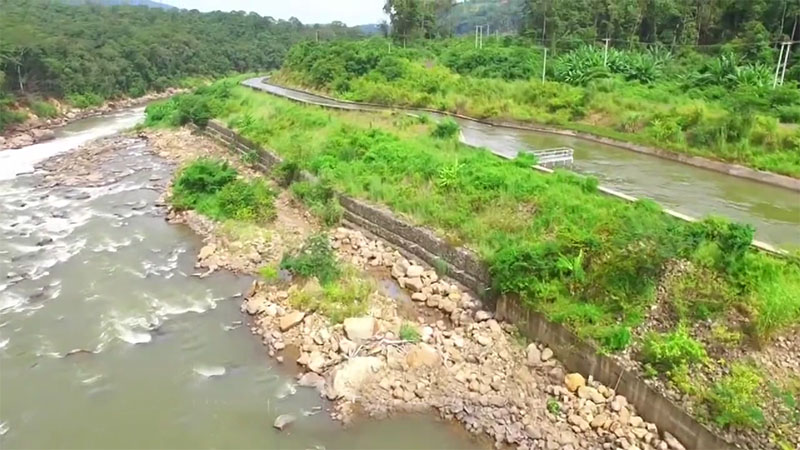

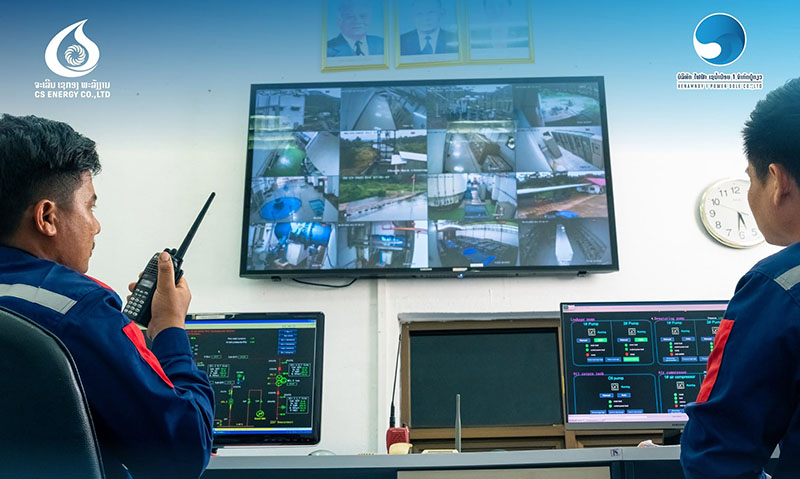

Other images of XeNamnoy Hydropower project below:

XeNamnoy 1 Dam location shown on center of map below:

XeNamnoy 1 Dam Hydropower project is designed to qualify for receipt of carbon reduction credits under the Kyoto Protocols since it may reduce overall CO2 emissions by replacing dirty power production based on combustion of fossil fuels. Annual carbon dioxide greenhouse gas emission reductions are estimated to be 47,558 tons per year. View or download the CDM application document HERE .

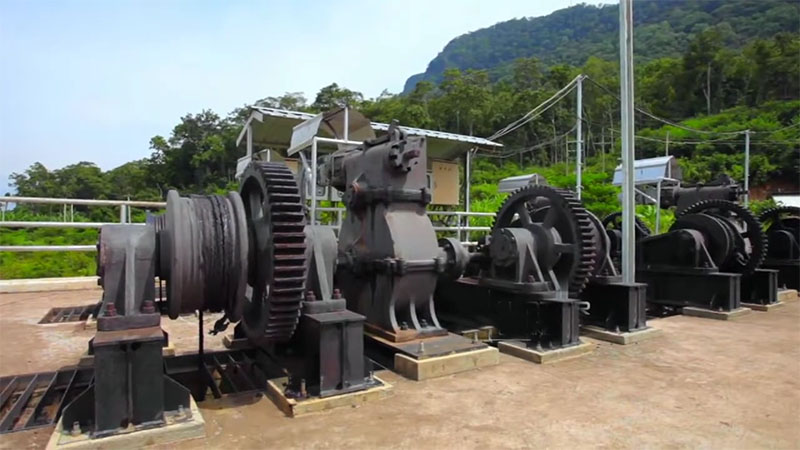

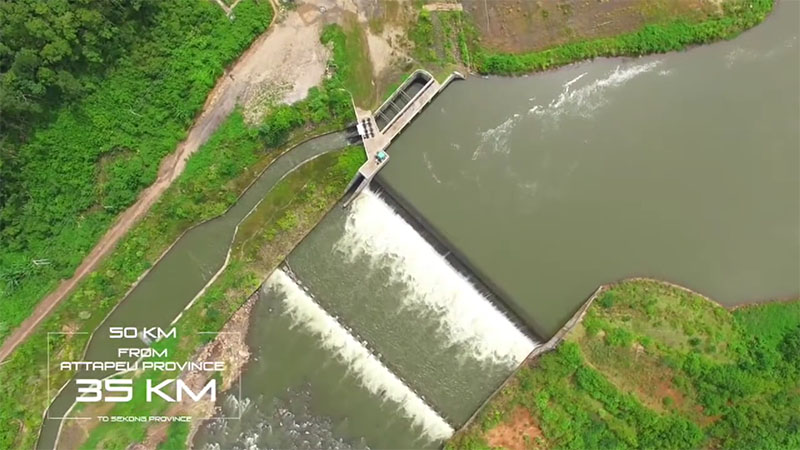

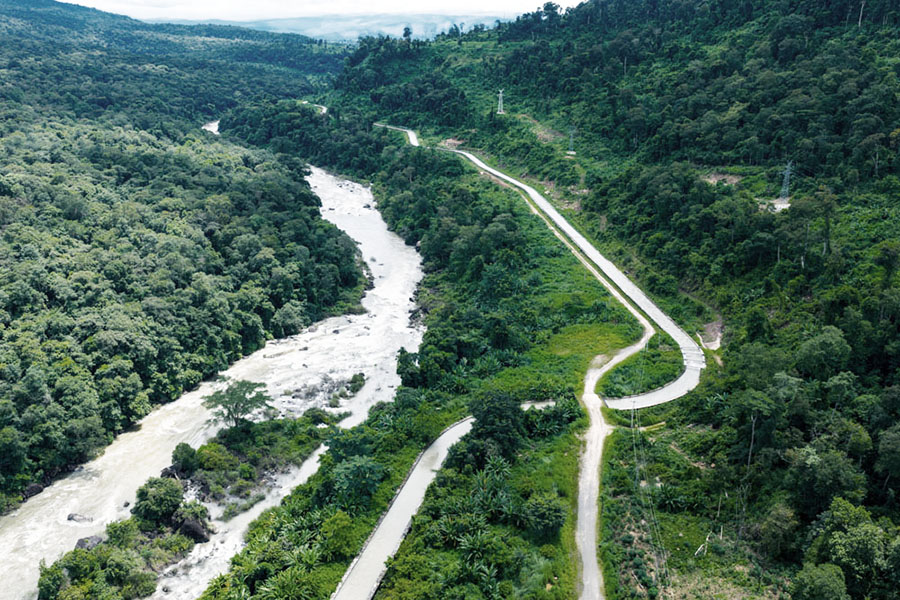

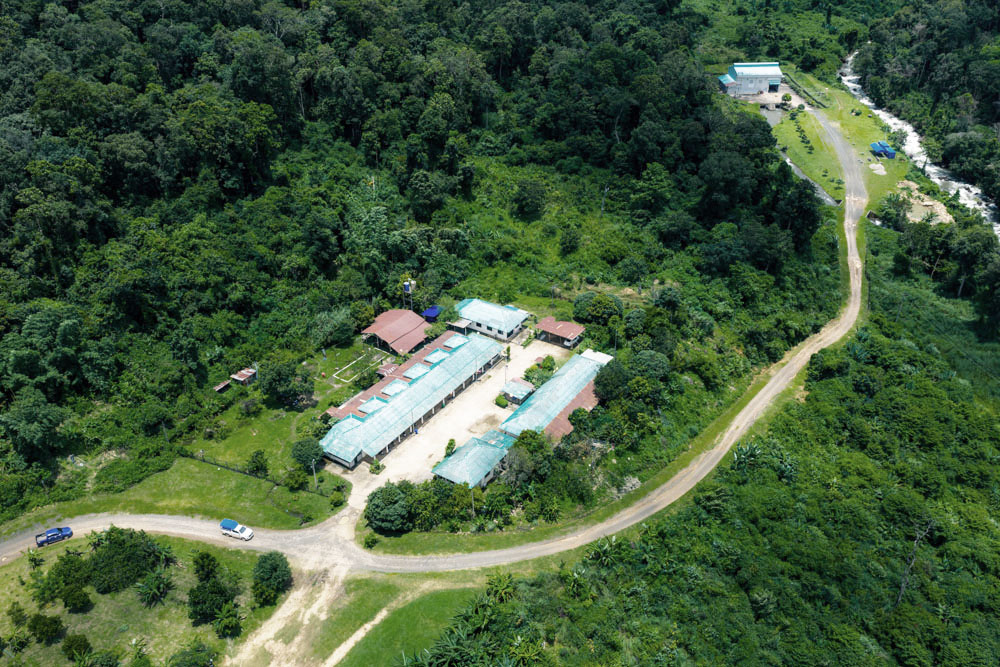

More images of XeNamnoy 1 project below:

XeNamnoy 1 project history below from CS Energy website:

• On January 13, 2011, the Water Resources and Environment Certificate was issued.
• On January 26, 2012, the concession certificate was issued
• On May 11, 2012 Concession Agreement signed with the government
• On February 12, 2018, an investment license was issued
• On 11 May 2012, Xe Nam Noy 1 Power Company Limited signed a power purchase agreement with EDL.
• September 10, 2013. State land use license

• Project Owner: Xe Nam Noy 1 Hydropower Company Limited.
• Design study by: Phongsubthavy Construction Company.
• Monitors By: Phongsubthavy Construction Company.
• Recipient: Phongsubthavy Construction Company hired Dong Fang Company.
• Machinery buyer: Phongsubthavy Construction Company.
• Manufacturer of electric machinery: Dong Fang Company.
• Construction of 115 kw transmission line.
• Experiments By: SAHA Trade Co., Ltd. and Electricite du Laos.

-----------

In recent satellite images we see a new diversion of water from Houay Kong stream into XeKatam & XeNanoy river systems as shown below: See larger scale version HERE

This diversion should increase output for both XeKatam 1 & XeNamnoy1 powerhouses. We are not sure who developed and financed the Houay Kong diversion. All we know is what we see on satellite images in 2024.

Houay Kong diversion images below at coordinates 15°06'17.5"N 106°33'58.1"E (15.104861, 106.566139):
